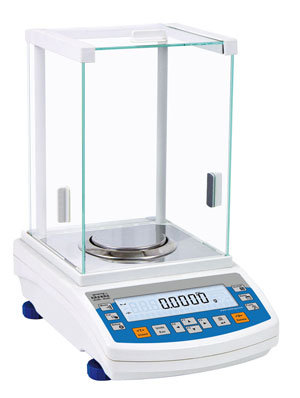

           欧洲Radwag AS220.R2电子分析天平0.1mg


产品优势:
欧洲整机原装进口,质量稳定,价格实惠。

欧洲Radwag AS220.R2电子分析天平0.1mg

产品特点:

抗干扰功能:优化天平抗外界干扰性能,确保称量结果始终准确

键盘直接设有DatabaseFunction快捷键及F1-F4可编程功能键等,方便操作

醒目的背光显示屏及象形图符,使所有信息清晰直观一目了然

自定义信息系统:

用户-10

产品-1000

称重-1000组数据

去皮-10

ALIBI内存-100000

自定义打印输出,三个可配置部分的用户自定义报告打印输出

支持多国语言显示及PCL打印协议

通过 无线 WIFI USB接口 可直接将测量数据传输至软件进行管理

ALIBI安全内存数据库:100000组,并保证了数据存贮的安全性及长久性

多种数据交换:标配 2RS2322USB WIFI(选购)

全自动校准技术,温度漂移和时间设置触发的内置砝码全自动校准校准

欧洲Radwag AS220.R2电子分析天平0.1mg

技术参数:

型号:

AS101.R2

AS 42/120.R2

AS 82/220.R2

AS 60.R2

AS120.R2

AS220.R2

AS 310.R2

量程

101 g

42/120g

82/220 g

60 g

120 g

220 g

310 g

可读性

0.01mg

0.01/0.1 mg

0.1 mg

0.1 mg

0.1 mg

0.1 mg

重复性

0.03mg

0.03/0.1 mg

0.1 mg

0.1 mg

0.1 mg

0.1 mg

线性

±0.1 mg

±0.1/0.2 mg

±0.2 mg

±0.2 mg

±0.2 mg

±0.3 mg

秤盘尺寸

ø 70 mm

ø 70 mm

ø 85 mm

稳定时间

6 s

6 s / 3.5 s

3.5 s

灵敏度漂移

1 ppm/°C  温度  10 ° - 40 °C

工作温度

10 ° - 40 °C

电源

12 - 16 V DC / 250 mA 350 mA for scales with WiFi

校准

全自动内部校正

显示

LCD (背光)

接口

2RS 232, USB-A, USB-B, WiFi (选购)

称重室尺寸

160×168×227 mm

净重/毛重

5.6/7.7 kg

主机尺寸

333×206×355 mm

包装尺寸

490×400×505 mm

, ,

欧洲Radwag AS220.R2电子分析天平0.1mg



Auto-Cal System

Auto-Cal system is a tool for control and correction, which allows accurate weighing regardless of changes in temperature, the position of the balance or changing environmental conditions. This allows the R-series balances to offer accuracy in all conditions.

Repeatability

The monolithic system ensures even greater accuracy and repeata, bilit, y of weighing due to consolidation of elements of the balance structure. Using such technology results in higher quality balances.

Operating temperature range

A wide operating temperature range does not require con, , tinuous monitor and control of room temperature, which affects the accuracy of the balance.

Resistance to ambient conditions

Increased resistance to fluctuating ambient conditions such as breezes and changes in humidity provides more accurate measurements.

Easy exchange of data

Exchange of data within the system takes place bidirectionally with the use of fast USB connection. New balances enable importing and exporting of databases to external Pendrives.

Fast access to information

Direct access to functions and databases is possible through the quick access buttons on the display.
Database - direct access to database
Function - direct access to basic functions
F1 do F4 - programmable function buttons and menu navigation

Communication interface

The exchange of database information between the devices has become even easier thanks to two USB ports (type A and B) and Wi-Fi technology.

Information system

The new R-series balances feature information system, based on five types of databases, users with sufficient access rights to use the database of multiple products.

The weighments collected in the weighing database can be further analysed:

  • users (up to 10 users),
  • products (up to 1000 products),
  • weighments (up to 1000 weightments),
  • tares (up to 10 tares),
  • ALIBI memory (up to 100 000 measurements)


Large easy to read LCD

New LCD display with enlarged characters allows for a clearer display of measurement results.

Multilanguage menu

The new R-series balances allow for the implementation of any language based on the Latin alphabet.

,

Pictograms and units

The application of pictograms increases the clarity of the display and facilitates more intuitive navigation through the balance settings. The new R-series balances use pictograms for displaying working mode, connection with the PC, battery level, as well as weighing and service functions.

Additional information line

New information line allows for additional messages and information, for instance: product name or tare value.

Privacy

Access to the security sensitive data is only possible when lo, gged-in. The access level is set up from the administrator level.

ALIBI memory

ALIBI memory is non-deletable storage, protecting weighing data . It has the capacity of up to 100 000 weighing records. This ensures both security and flexibility of storing data over longer periods of time.

Archiving and data exchange

In order to save the data, the reports from the processes and partial measurements can be transferred to external devices via USB interface. Additionally, it offers more control over working process, as well as restoring the data and coping settings between balances.

Configurable printouts

In the new R-series balances the weighment reports are divided into 3 configurable sections, each of which can be fully customised content-wise.

PCL

The new R-series balances work with the printers that support PCL protocol. The printers are connected with the balances via USB port.

Cooperation with PW-WIN / RADKEY

The new R-series balances allow for printouts to be sent directly to PW-WIN and RADKEY software, which facilitates their further analysis. The measurement transfer can be carried out by using Wi-Fi and USB interface depending on the needs.

品牌简介:

RADWAG创立于1984年,在短短30年间就已成为全球仅有三家可生产“0.1ug千万分之一”精度超微量天平和质量比较仪的生产厂家之一。

深圳市怡华新电子有限公司成立于1998年,是RADWAG品牌真正引进中国的开拓者!自2009年成为RADWAG大中国区代理以来,一直孜孜不倦大力拓展RADWAG产品在中国的市场。也正是这样,越来越多的中国用户才逐渐认知了RADWAG这个品牌。虽然RADWAG在欧洲天平领域可以媲美任何品牌,但在中国市场却少人知悉,正因为RADWAG是一家以“科技创新”“服务为本”的欧洲本土型家族企业,一直致力于技术创新和服务专业化并同时帮一些国际品牌做OEM产品。


,
